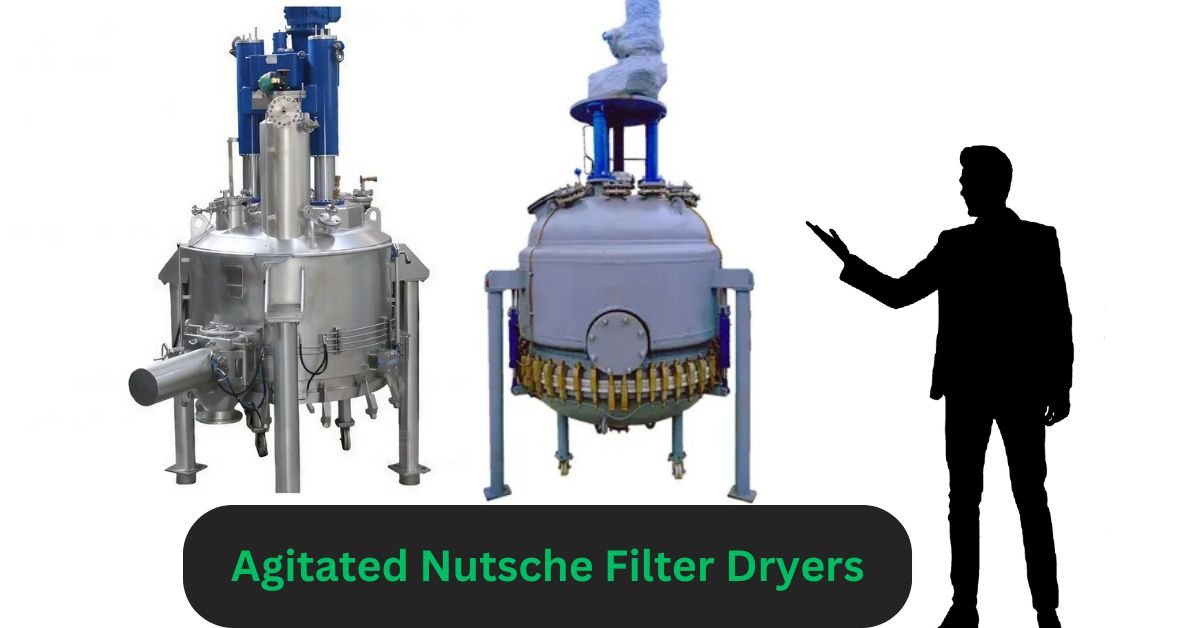

Agitated Nutsche Filter Dryer

Agitated Nutsche Filter Dryers (ANFD) is a multipurpose filtration and drying equipment widely used in the chemical, pharmaceutical, polymer and Agro chemical, Dyes industries.

It is designed to perform solid-liquid separation and drying within a single closed unit, eliminating contamination risks and improving process efficiency.

This article provides an in depth understanding of the Agitated Nutsche Filter Dryer, covering its working principle, applications, method of operation, advantages, maintenance and various types of MOC .

What is an Agitated Nutsche Filter Dryers?

The Agitated Nutsche Filter Dryer (ANFD) is an advanced filtration and drying system designed to operate under pressure or vacuum. It is a closed vessel system used to separate solids from liquids while simultaneously drying the separated solids in the same unit.

Agitated Nutsche Filter Dryers consists of several key components, including a cylindrical vessel, a filtration plate, an agitator, and a heating system. The design ensures an efficient filtration process, followed by uniform drying using controlled agitation and heating.

Unlike traditional filtration methods, Agitated Nutsche Filter Dryers provides a contamination-free environment, making it ideal for applications requiring high purity, such as pharmaceuticals and fine chemicals. The system is designed for batch processing and allows for efficient product recovery with minimal wastage.

Definition and working principle

Definition : Agitator Nutsche filter dryer is closed vessel specially designed to filter mother liquor and cake from slurry and then dried by filtration under pressure or vacuum.

Working Principle : ANFD is a closed vessel to separate solid liquid by filtration under vacuum and pressure.

It is the closed system ensure odourless, contamination free, non polluting working condition and maintain product or hygiene and avoid any exposure.

Applications of Agitated Nutsche Filter Dryers

Not all separation operations demand the amount of technology supplied by a Nutsche. Nutsche filter/dryers are best utilized in those applications with the following process demands :

Low floor space
Environmental hazard threat due to toxic or flammable product
Accurate temperature control
Slurry washing
Total mother liquor/wash solution separation
Delicate cakes (i.e., prone to cracking)
Much as with all such specialized gear, Nutsche filter and dryers are not supposed to be some kind of versatile solution to whatever separation process exists. They must be carefully chosen. When cakes develop slowly or become tacky, if the operation is continuous or the product does not stay stable over a lengthy period of dormancy the technology might not be the best fit.

Component Of Agitated Nutsche Filter Dryers

N2 line

The N₂ line is used to purged nitrogen gas into the ANFD to maintain an inert atmosphere inside the vessel.
It prevents oxidation, contamination, and explosion risks, especially when handling flammable solvents.
Nitrogen purging helps to remove moisture and preventing the formation of lumps.

Washing line

The washing line allows for efficient washing of the solid cake after filtration to remove impurities or residual solvents.
It helps in impurity removal by introducing washing liquid, ensuring uniform washing throughout the material.

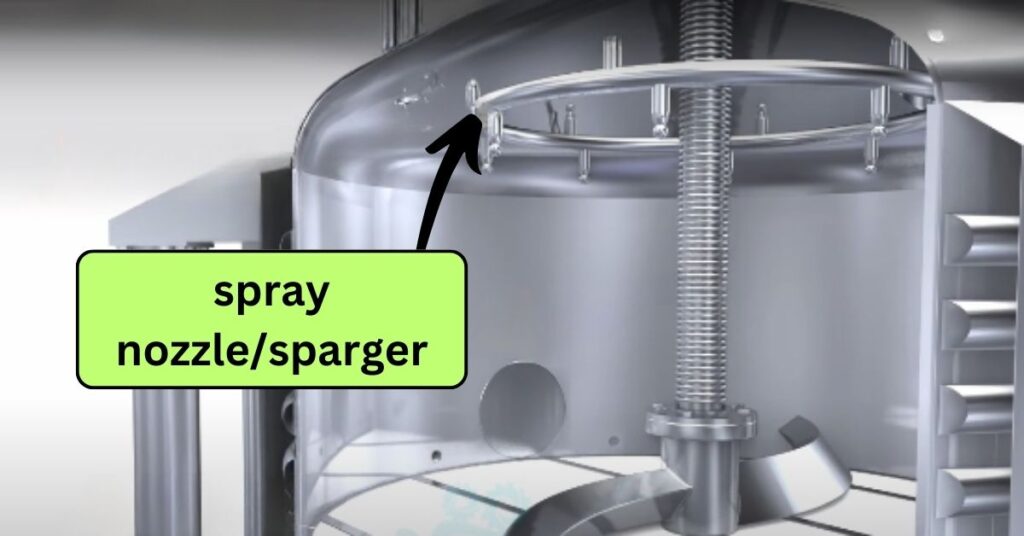

spray nozzle /Sparger

The spray nozzle is installed inside the ANFD to ensure even distribution of the washing liquid over the filter cake.
It improves washing efficiency by preventing localized accumulation of contaminants. Ensures complete removal of impurities without excessive solvent usage.

Slurry feed line

This is the inlet through which the slurry (a mixture of solid and liquid) is introduced into the ANFD for filtration.

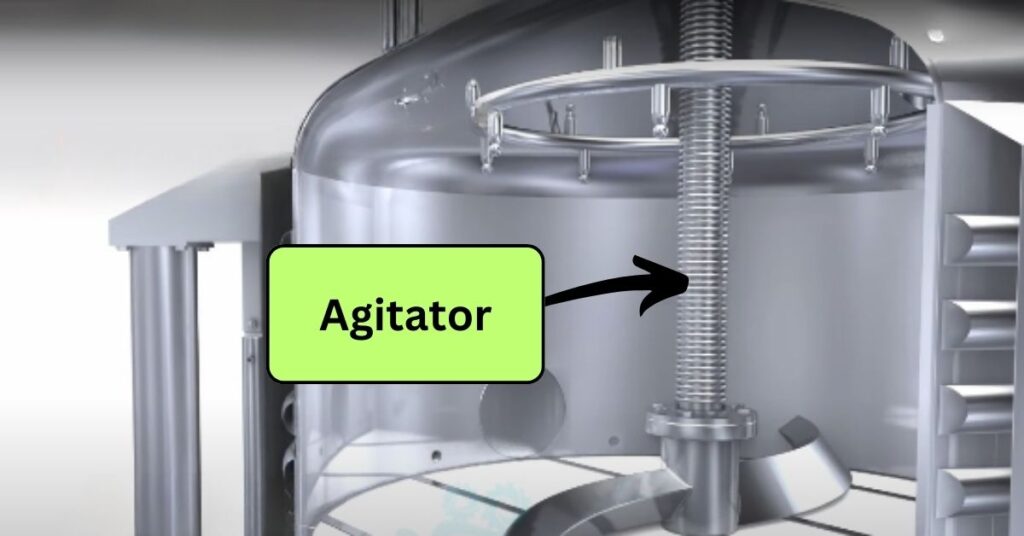

Agitator

The stirrer or agitator inside the ANFD helps in mixing, resuspension, and uniform drying of the material.
It prevents cake formation during filtration and ensures homogeneous drying.
The agitator can move vertically and rotate, helping in breaking lumps and improving drying efficiency.

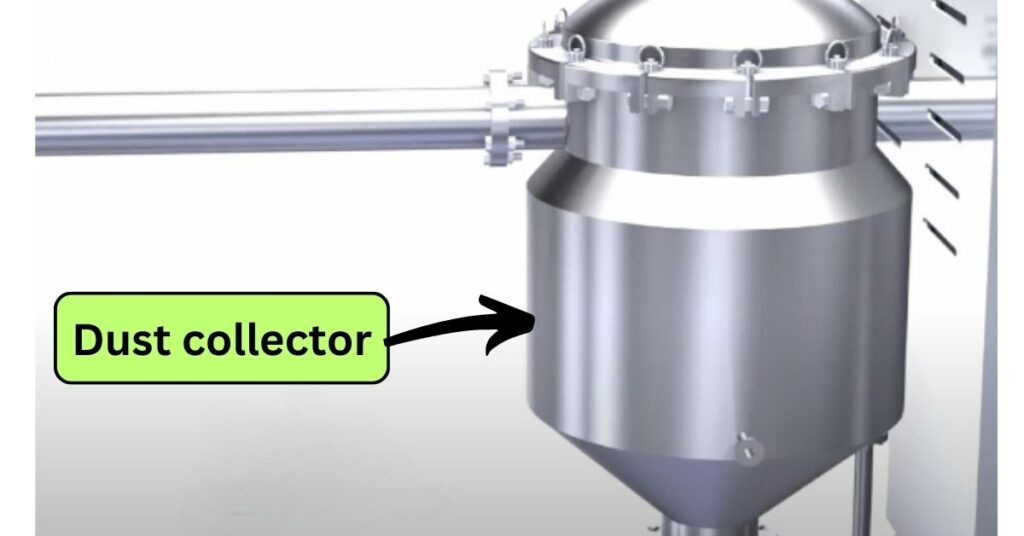

Dust collector & cyclone

A dust collector is attached to ANFD to capture fine particles that may be released during filtration or drying.
The cyclone separator works by using centrifugal force to separate dust from the air, preventing contamination and loss of material.
Essential for maintaining a clean and safe working environment, especially in fine chemical and pharmaceutical industries.

Vent line

The vent line allows the removal of vapors and gases generated during drying and filtration.
It prevents pressure buildup inside the ANFD and ensures safe operation.

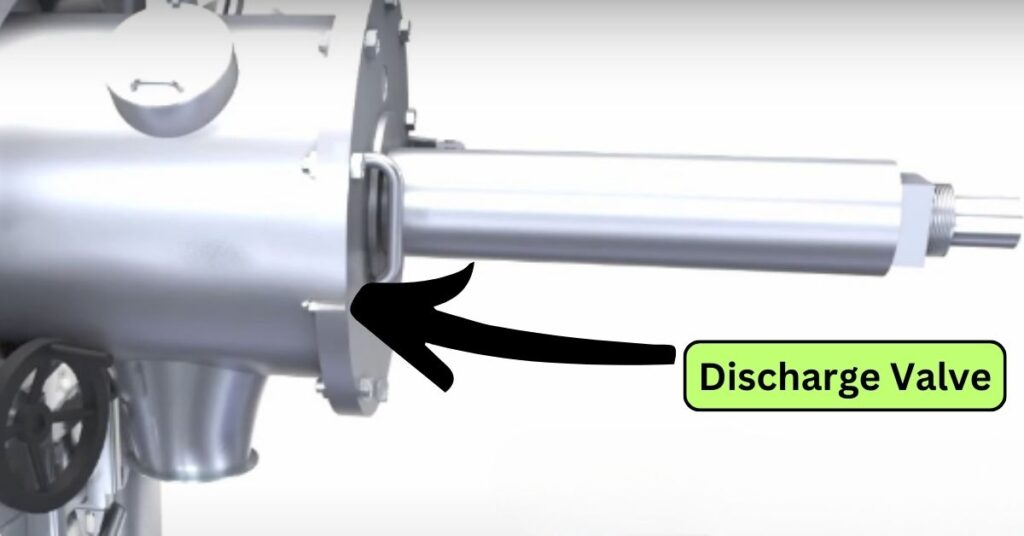

Unloading point / discharge valve

The discharge valve is used to remove the processed material from the ANFD after filtration and drying.
Designed to provide controlled discharge without material loss or contamination.
Can be manually or pneumatically operated for safe and efficient unloading.

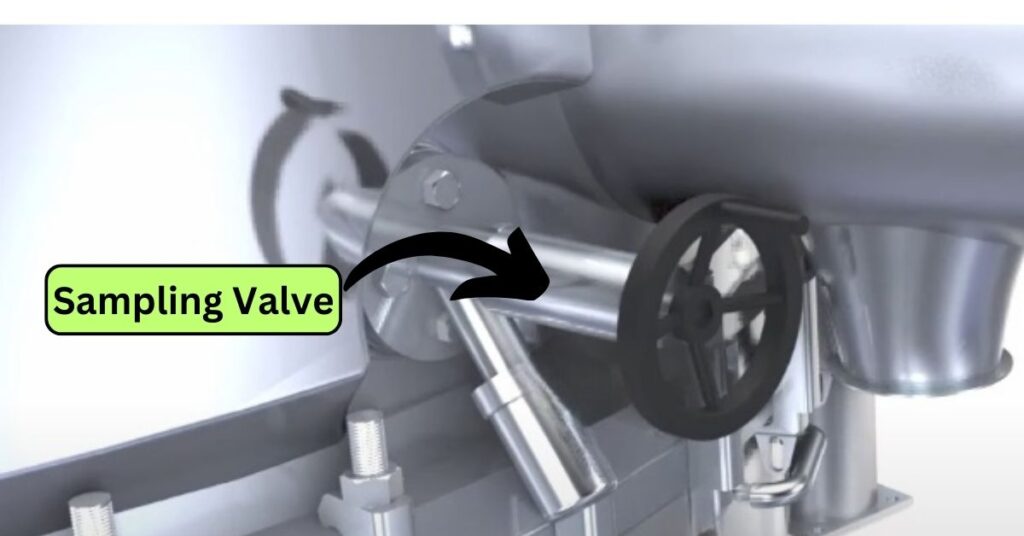

Sampling point

A sampling point is provided in ANFD to take samples of the product during processing without disrupting the operation.
Allows quality control checks to ensure consistency in product properties.

Side manhole

The side manhole is an access point that allows maintenance personnel to enter the ANFD for inspection, cleaning, and repairs.
Equipped with safety interlocks to prevent accidental opening during operation.
Ensures easy and safe maintenance, improving the longevity of the equipment.

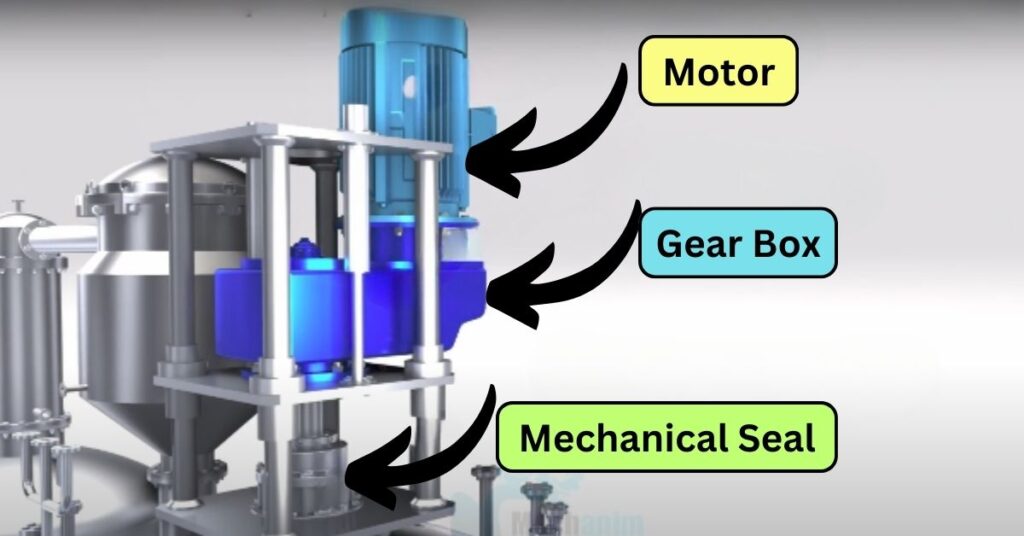

Hydraulic system

The hydraulic system controls the movement of the agitator and discharge mechanism.
It allows vertical and rotational movement of the stirrer for efficient mixing and cake drying. Ensures smooth and precise operation with minimal manual intervention.
Enhances process automation, reducing labor costs and improving efficiency.

Different Types Of MOC For Agitated Nutsche Filter Dryers

SS316
SS304
Hastelloy : used in acidic media
ECTFE Coated (Ethelene Chloro tri-Fluro Ethelene) : used in acidic media
Titanium
MSGL

Types of Filter Cloths Used in ANFD

Polypropylene (PP) Filter Cloth
- Excellent chemical resistance (ideal for acids, alkalis, and solvents).
- Good mechanical strength and wear resistance.
- Hydrophobic (repels water but allows solvent filtration).
- Easy to clean and maintain

Polyester (PET) Filter Cloth
- Good mechanical strength and durability.
- High temperature resistance (up to ~150°C).
- Moderate chemical resistance.
- Hydrophilic nature (absorbs some moisture)

Nylon (Polyamide) Filter Cloth
- High tensile strength and elasticity.
- Resistant to abrasion.
- Moderate resistance to acids but good resistance to alkalis

PTFE (Polytetrafluoroethylene) / Teflon Filter Cloth
- High resistance to aggressive chemicals and extreme pH.
- Can withstand high temperatures (up to ~250°C).
- Non-stick surface prevents clogging

Cotton Filter Cloth
- Natural fiber with good absorbency.
- Limited chemical resistance.
- Not suitable for high-pressure or high-temperature applications.

3. Working Principle of Agitated Nutsche Filter Dryers

7 Step-by-step process

1. Filling/Charging
2. Filtering
3. Displacement Washing
4. Reslurry Washing
5. Smoothing
6. Drying/Cooling
7. Discharging

Some benefits of using this technology include :

Product isolation
Minimal operator exposure
Reduced product handling
Environmental protection against solvent vaporization
The level of containment supplied can comply with GMP and other health and safety requirements.

1. Filling/ Charging

Transferring of the product to be filtered from the primary location (e.g. reactor) to the filter/dryer
- Usually an aqueous or solvent based solid/liquid slurry
The filter should be sized appropriately to handle the solids volume that is being charged
- The maximum solids height should be equal or less than the agitator stroke, typically 12-20 inches.

2. Filtering

Uses pressure and/or vacuum to force liquid through the solid bed and filter media.
The process is stopped when solids are visible, or can be continued until all the liquid is pushed out Various filter media available,

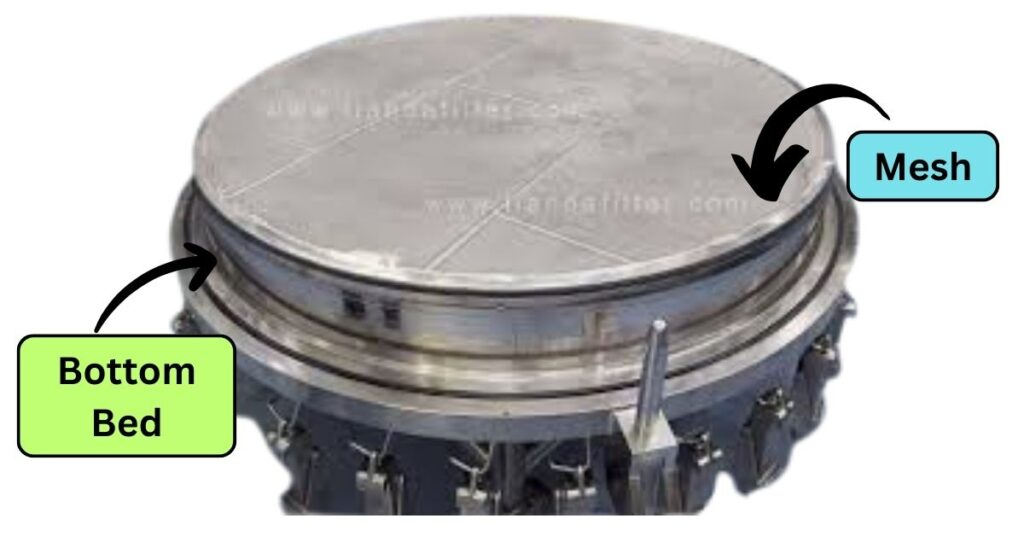

- Cloth, single layer metal screen, multi-layer sintered metal.
The media should be determined based on the characteristics of the slurry.
- Particle size and shape, cake porosity, compressibility

3. Displacement Washing

Fresh wash liquid is sprayed on top of the solid cake.
The liquid is forced through with pressure or vacuum.
Displacement washing serves several purposes,
- It removes the liquid and its impurities while keeping the cake intact
- It replaces the previous liquid with fresh liquid
- It can help close cracks if the cake has any via smoothing

4. Reslurry Washing

Can be performed if additional extraction or dissolving of impurities is necessary.
Fresh wash liquid is added and mixed with the solids.
- The agitator is stopped and raised before filtering the wash liquid

Used when
- A long contact time is needed between the wash fluid and the solids
- The displacement wash does not provide the required wash quality

5. Smothering

The agitator is used to close cracks and compress the cake to reduce residual moisture level
- Helps to achieve uniform flow of liquid or gas through the filter cake.
- Helping to eliminate liquid and gas channeling that reduces the efficiency of displacement washing and gas blow through.
This step may be used after any filtration or wash (especially after the final wash, when gas is blown through the cake).

6. Drying / Colling

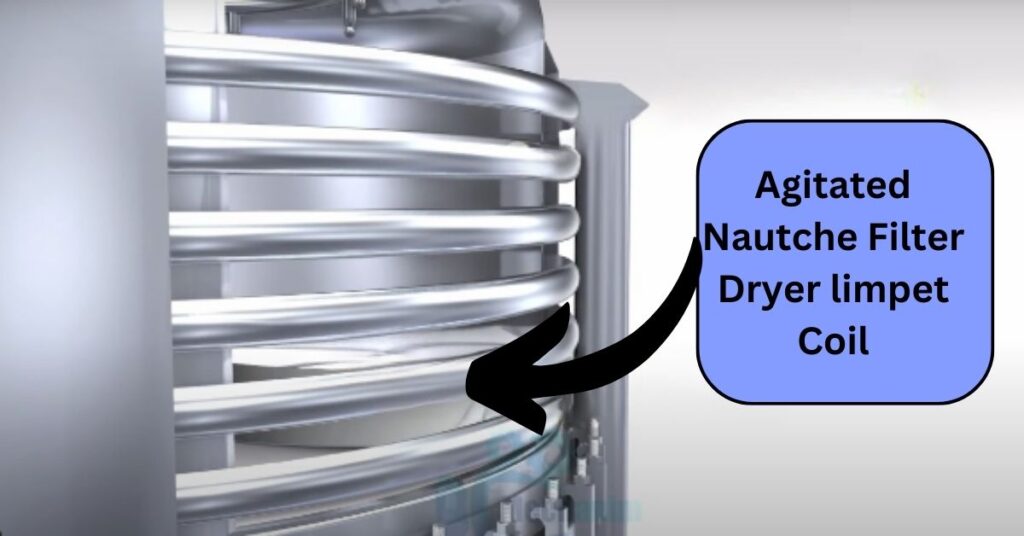

Nutsche vessel surfaces (including the wall, base, and agitator) are heated to incorporate drying function.
Two types of drying that can be conducted, depending on product behavior
- Vacuum drying (most common method) utilizes vacuum to reduce the temperature at which the solvent evaporates and reducing the average drying temperature.

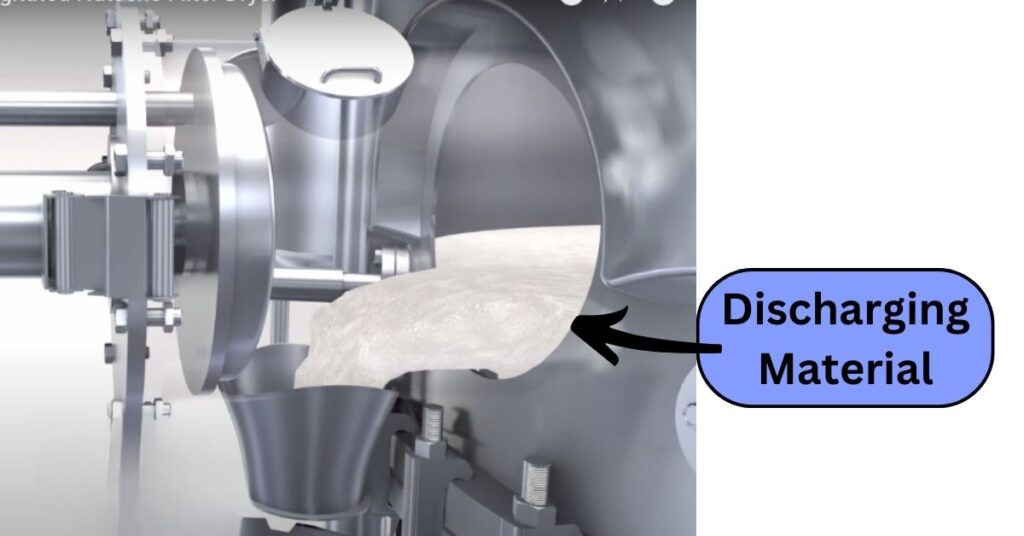

7. Discharging

After approval of sample product is cooled down to ambient temperature dryer to discharge by applied cooling limpet. Finally cuts and scraps cake anti-clock wise direction and product unload through discharge valve.

After drying, the final product is discharged through a bottom valve. The agitator helps break up the dried cake for easy removal.

Role of agitation in enhancing efficiency

Agitation is a crucial motive for maximizing the efficiency, performance, and productivity of an Agitated Nutsche Filter Dryer (ANFD).

Make a uniform slurry and uneven cake formation
Reduce the filtration time
Removal of impurities in the cake
Enhance time cycle and cost
Better heat transfer
Less material lose and achieve higher yield

Importance of vacuum drying in ANFD

1. Reduced Drying Time

Low-Pressure Evaporation : Vacuum lowers solvents’ boiling point, intensifying the water evaporation rate.
Reduced Cycle Time : Dries faster than traditional air drying, improving productivity.

2. Avoids Thermal Degradation

Optimised for Heat-Sensitive Products : Low-temperature drying inhibits product degradation.
Protects Active Ingredients : Retains chemical and physical integrity of sensitive materials such as APIs (Active Pharmaceutical Ingredients).

3. Energy Economy

Lower Temperatures of Drying : Eats less power than high-temperature drying systems.
Less Operating Costs : Savings on money through efficient use of energy.

4. Uniform & Controlled Drying

Symmetric Removal of Water : Vacuum agitation drying offers consistent drying of the filter cake.
Prevents Over-Drying : Quality product with controlled conditions.

5. Improved Recovery of Solvent

Closed System Recovery : Recycles the solvents for repeated use, minimising waste and regulations compliance.
Reduces Losses : Efficient recovery of the solvents, minimising raw material costs.

6. Avoids Contamination of Product

Closed System Operation : Provides dust-free and contamination-free drying with GMP compliance.
Hygroscopic & sensitive materials : Avoids post-drying water uptake.

7. Enhances Product Yield & Quality

Reproves Residual Moisture : Facilitates low end-dry moisture level achievement, enhancing shelf life and stability.
High-Quality Output : Calms impurities by efficient trace removal of solvent.

Advantages of Agitated Nutsche Filter Dryer

Improved Filtration and Drying Efficiency
Agitated Nutsche Filter Dryers accomplishes dry cake solid-liquid separation and drying through one machine, significantly reducing process time and total efficiency improvement.

Cleaner Processing
The process is entirely closed through, which prevents contamination and highly suitable for food processing, chemical, and pharmaceutical And Agro chemicals applications.

Highest Product Yield
Drying and filtration of material in Agitated Nutsche Filter Dryers minimizes product loss to a significant degree, which leads to increased recovery percentage as well as increased process efficiency.

Low-Temperature Vacuum Drying
Low-temperature drying is made possible by the vacuum drying facility. Agitated Nutsche Filter Dryers can treat heat-sensitive materials effectively without their loss of quality.

Effective Solvent Recovery
There are facilities for vapor recovery in the unit, and they prevent wastage of solvents as well as minimize environmental impacts through efficient utilization of solvents.

Uniform and Consistent Drying
There is integrated agitator to ensure even motion and material movement for lump avoidance and even drying for improved consistency of the product.

Flexible Multi-Stage Processing
ANFD does not limit processing to only drying and filtration but also washing, re-slurrying, and extraction in a single unit, thus minimizing the operation with multiple units of equipment.

Improved Safety Standards
In application operations involving high risk, ANFD can be operated in explosion-proof and high-pressure modes and simultaneously provide safety to the material and operator.

Automated Sterilization and Cleaning
Combining CIP (Clean-in-Place) and SIP (Sterilize-in-Place) systems, ANFD offers clean and easy performance, which in hygienic use is of almost highest significance.

Reduced Handling of Labor and Labor Cost
With auto operation, ANFD minimizes the use of human hands by a great measure, lowering labor charges cost in addition to protecting workers from toxic substances even more by minimizing contact.

Types of Agitated Nutsche Filter Dryers

Standard ANFD : It designed to general filtration and drying process.
Pressure ANFD : It designed to operate under high pressure condition for efficient filtration.
Vacuum ANFD : It designed to under vacuum drying and reducing process time.
Special material-based ANFD (SS, Hastelloy, Titanium) : use for corrosive and sensitive materials.

Safety Devices Used in ANFD

Pressure safety valve / pressure relief valve
Rupture disc
Vacuum relief valve
Nitrogen gas used for inert gas atmosphere
Earthing and bonding for dissipating static electricity
Flam arrestor used for fire propagation in case of ignition
Emergency pause button used for in case of any emergency situation.
Level sensor and interlocks
Proximity switch used for electricity isolation

10. Conclusion

Agitated Nutsche Filter Dryers (ANFD) are tough and flexible solid-liquid separation and drying units commonly used in the pharmaceutical, chemicals, agrochemicals, and dye industries.

ANFD operates in closed system mode to provide contamination-free processing, high purity, and increased safety.

ANFD enhances efficiency, decreases processing time, and decreases product loss with capabilities such as vacuum drying, solvent recovery, and automation.

Their safe operation is assured by the inclusion of protective gear like pressure relief valves, vacuum breakers, and nitrogen purging.

Their multi-stage processing with washing, filtration, and drying makes them an essential technology for controlled and precise processing.
